CTU SOLUTIONS
Carton Transfer Unit
Elevate Your Logistics with North Robotics’ Carton Transfer Unit (CTU)
In the demanding logistics arena, every detail counts. North Automation Group Ltd invites you to reimagine your operations with our remarkable Carton Transfer Unit (CTU) goods to person robots – an automated, unmanned picking and handling robot that represents the cutting edge in logistics technology.
With the capacity to transfer multiple goods simultaneously, our CTU solutions redefine the parameters of efficiency and storage capacity. This isn’t just a technical upgrade, but a strategic leap towards superior productivity. Harness the power of automation to transform your logistics operations, making them more efficient and effective with North Robotics’ CTU. Step into a future of maximized efficiency and capacity, where the potential of your operations is only limited by your ambition.
Also check out our LMR goods to person robots.
Products
F0-50DC
250
Rated load (KG)
5
Bin number
1000
Aisle width (mm)
500
Max lifting speed (mm/s)
±10,±1
Positioning Accuracy (mm,°)
280~2087
Docking height (mm)
| Dimension L*W*H (mm) | 1730*850*2600 |
| Weight (with battery) (kg) | 605 |
| Rated speed (m/s) | 1.5 |
| Adaptable tote dimension (mm) | (200-620)*(200-450)*(120-360) |
| Charging time (h) | ≤2 |
| Run time (h) | 6-8 |

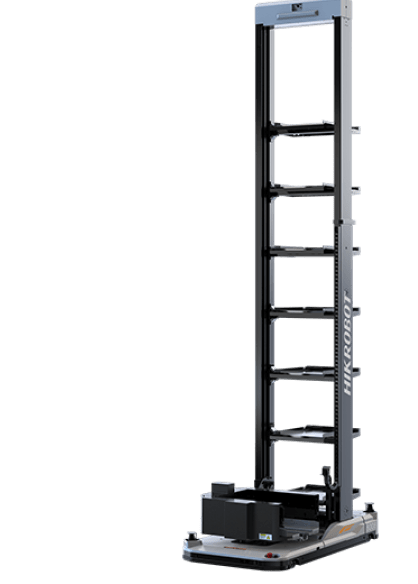

F0-50DCH
250
Rated load (KG)
7
Bin number
1100
Aisle width (mm)
500
Max lifting speed (mm/s)
±10,±1
Positioning Accuracy (mm,°)
270~4000
Docking height (mm)
| Dimension L*W*H (mm) | 1730*950*4565 | |
| Weight (with battery) (kg) | 720 | |
| Rated speed (m/s) | 1.8 | |
| Adaptable tote dimension (mm) | 600*400*(120~420) | |
| Charging time (h) | ≤2 | |
| Run time (h) | 6-8 |

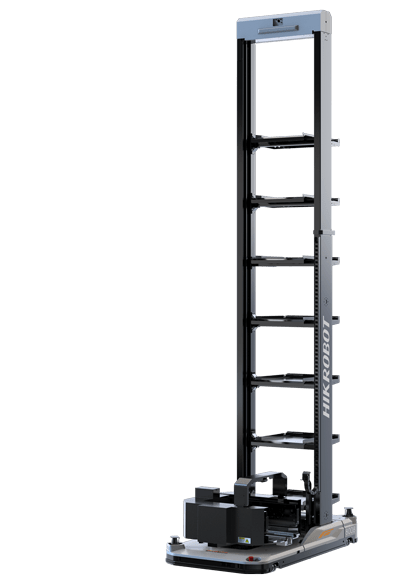

F0-50DCH(D)
250
Rated load (KG)
7
Bin number
1100
Aisle width (mm)
500
Max lifting speed (mm/s)
±10,±1
Positioning Accuracy (mm,°)
270~4000
Docking height (mm)
| Dimension L*W*H (mm) | 1730*950*4565 |
| Weight (with battery) (kg) | 760 |
| Rated speed (m/s) | 1.8 |
| Adaptable tote dimension (mm) | (300~600)*(300~400)*(120~420) |
| Charging time (h) | ≤2 |
| Run time (h) | 6-8 |
F0-50DCH(A)
250
Rated load (KG)
7
Bin number
1100
Aisle width (mm)
500
Max lifting speed (mm/s)
±10,±1
Positioning Accuracy (mm,°)
270~4000
Docking height (mm)
| Dimension L*W*H (mm) | 1730*950*4565 |
| Weight (with battery) (kg) | 737 |
| Rated speed (m/s) | 1.8 |
| Adaptable tote dimension (mm) | (450~620)*(200~450)*(120~350) |
| Charging time (h) | ≤2 |
| Run time (h) | 6-8 |

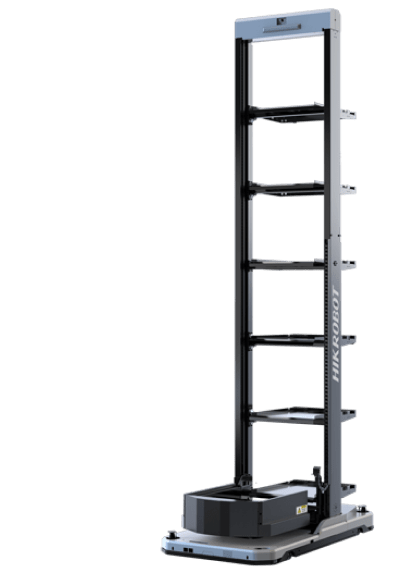

F0-50DCW
250
Rated load (KG)
6
Bin number
1270
Aisle width (mm)
500
Max lifting speed (mm/s)
±10,±1
Positioning Accuracy (mm,°)
270~4170
Docking height (mm)
| Dimension L*W*H (mm) | 2015*1120*4740 |
| Weight (with battery) (kg) | 780 |
| Rated speed (m/s) | 1.8 |
| Adaptable tote dimension (mm) | (450~620)*(200~450)*(120~350) |
| Charging time (h) | ≤2 |
| Run time (h) | 6-8 |
CTU Industry Usage
Automobile
North Robotics is proud to offer Hikrobot’s mobile robot solutions that are designed to profoundly elevate the automobile industry. These reliable, safety-centric solutions drive logistic efficiency while significantly curbing labor costs. Applicable to pressing, welding, and assembling processes within main engine plants, they are not merely about mechanization; they create an operational ecosystem where production data flows freely, paving the way for agile manufacturing and lean management. Experience a transformative leap in productivity and cost-effectiveness. At North Robotics, we’re not just offering a solution; we’re redefining the possibilities for your automotive enterprise.
Consumer Electronics
Within the rapidly evolving Consumer Electronics realm, North Robotics delivers Hikrobot’s innovative and adaptable robot solutions, streamlining manufacturing processes for Computers, Communication, and Consumer Electronics. Our solutions revolutionize plant-wide material transfer management, empowering it to become unmanned, fully automated, and informationized. This is more than just an upgrade; it’s a step into the future, embracing the power of automation and leading your business into a new era of unprecedented efficiency and control. Discover the true potential of your operations with North Robotics.
Manufacturing
In a world where technological innovation and market variability quicken the pace of product evolution, traditional logistics strategies struggle to keep up. North Robotics presents Hikrobot’s intelligent and flexible mobile robot solutions to the manufacturing industry. These are designed to nimbly adapt to demands for rapid and transparent production. We’re here to empower your enterprise, transforming challenges into opportunities, and paving the way for efficient, futuristic manufacturing. With North Robotics, we equip you with tools to turn the relentless pace of change into a powerful ally for your business.
Logistics
As the e-commerce boom fuels an explosive growth in the logistics industry, the demand for automation solutions that can replace manual work has never been higher. North Robotics’ Hikrobot solutions are poised to cater to these soaring demands, streamlining processes, enhancing efficiency, and enabling an accelerated throughput. In an era of unprecedented growth, our innovative robotics offer a pathway to a future where your logistics operations keep pace with the relentless demands of e-commerce. With North Robotics, discover an exciting new chapter in the story of your logistics enterprise.
Pharmaceuticals
In the high-stakes realm of Food and Pharmaceuticals, where stringent timelines and frequent production shifts are the norm, North Robotics delivers Hikrobot’s efficient and flexible mobile robots. Our solutions are not only designed to meet your dynamic needs, but they also prioritize production safety and compliance. From speeding up processes to adapting to change, our robotics offer a robust response to industry-specific challenges, transforming them into opportunities for growth and excellence. Step into a future of uncompromised efficiency, safety, and adaptability with North Robotics.
